Relational tables

Turn an ordinary Markdown table into cards, a board or a linked record view without giving up the file.

Put each row's key in the first column and write a relation as a link to the row with that key in another note, and Leaftext reads the table as linked records.

Leaftext calls this RDB: a relational table view over a Markdown table. The table remains ordinary GFM, so it opens everywhere it did before. Leaftext adds the view while you read it — in the desktop app, on a published Leaftext site and in a document embedded in another product — it does not move your records into a separate database or create a companion file.

Open a relational table

Point at a table with a header row and at least two body rows. A quiet bar appears above it with Table, Cards, Board, List, Sort, Filter and Describe, centered over the table, and the copy and whole-window buttons at the same bar's right end. The layout on screen is marked. A smaller table stays an ordinary table, with only those two buttons in the bar.

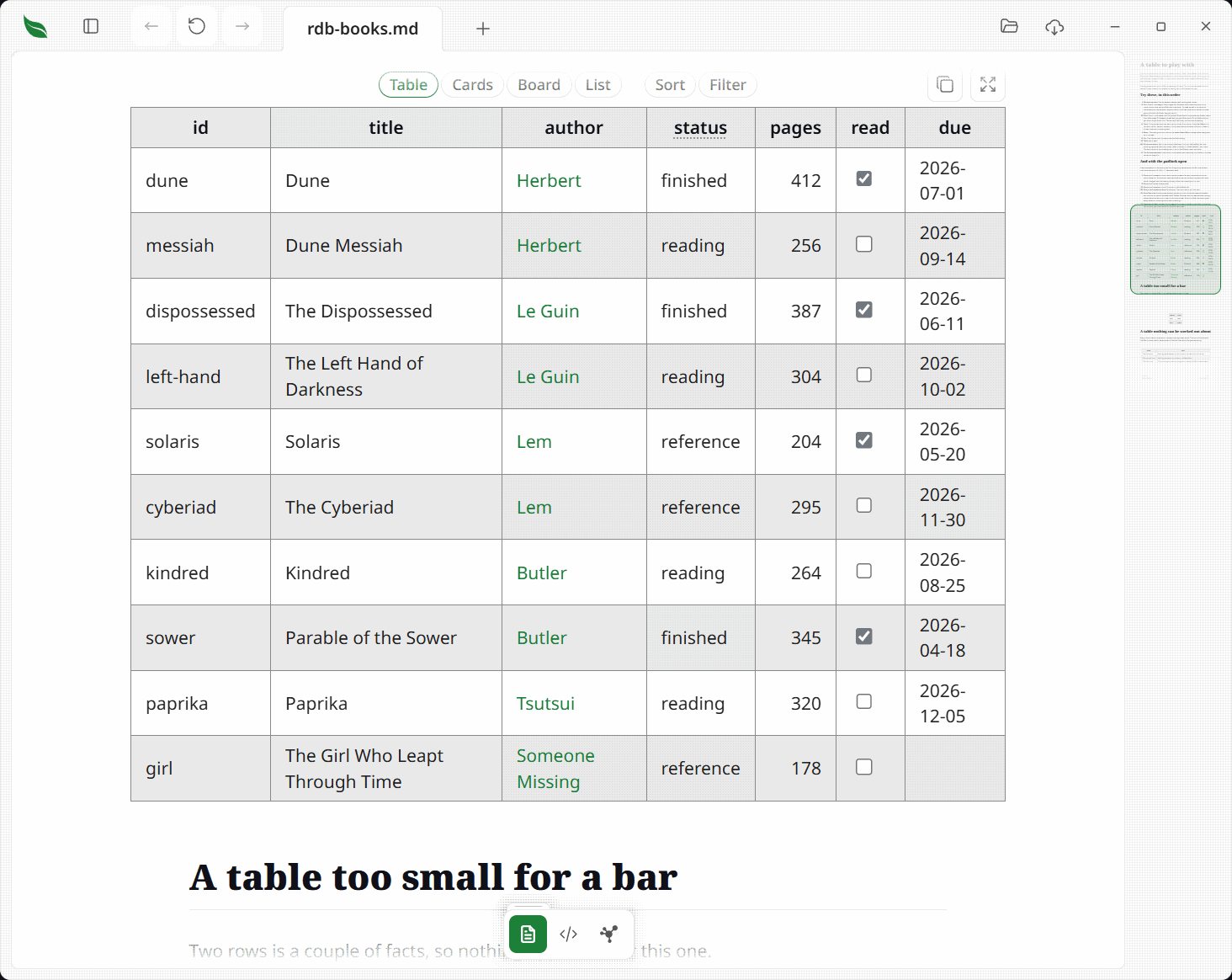

A reading-list table in the page with a quiet bar standing above it: Table marked, then Cards, Board, List, Sort and Filter, with the copy and whole-window buttons at its right end, over a table of id, title, author, status, pages, read and due columns whose author cells are green links

The view works from the values already in the table. Leaftext recognizes numbers, ISO dates, task checkboxes, short repeated values, lone images and links to another table. A column it cannot recognize stays text.

Views, sort and filter

Table is the Markdown table as written. Cards shows one record per card. Board groups cards by a short list of values such as a status or stage. List shows a record name and one trailing field. The field button beside a view says which columns it is using for as long as the document stays open.

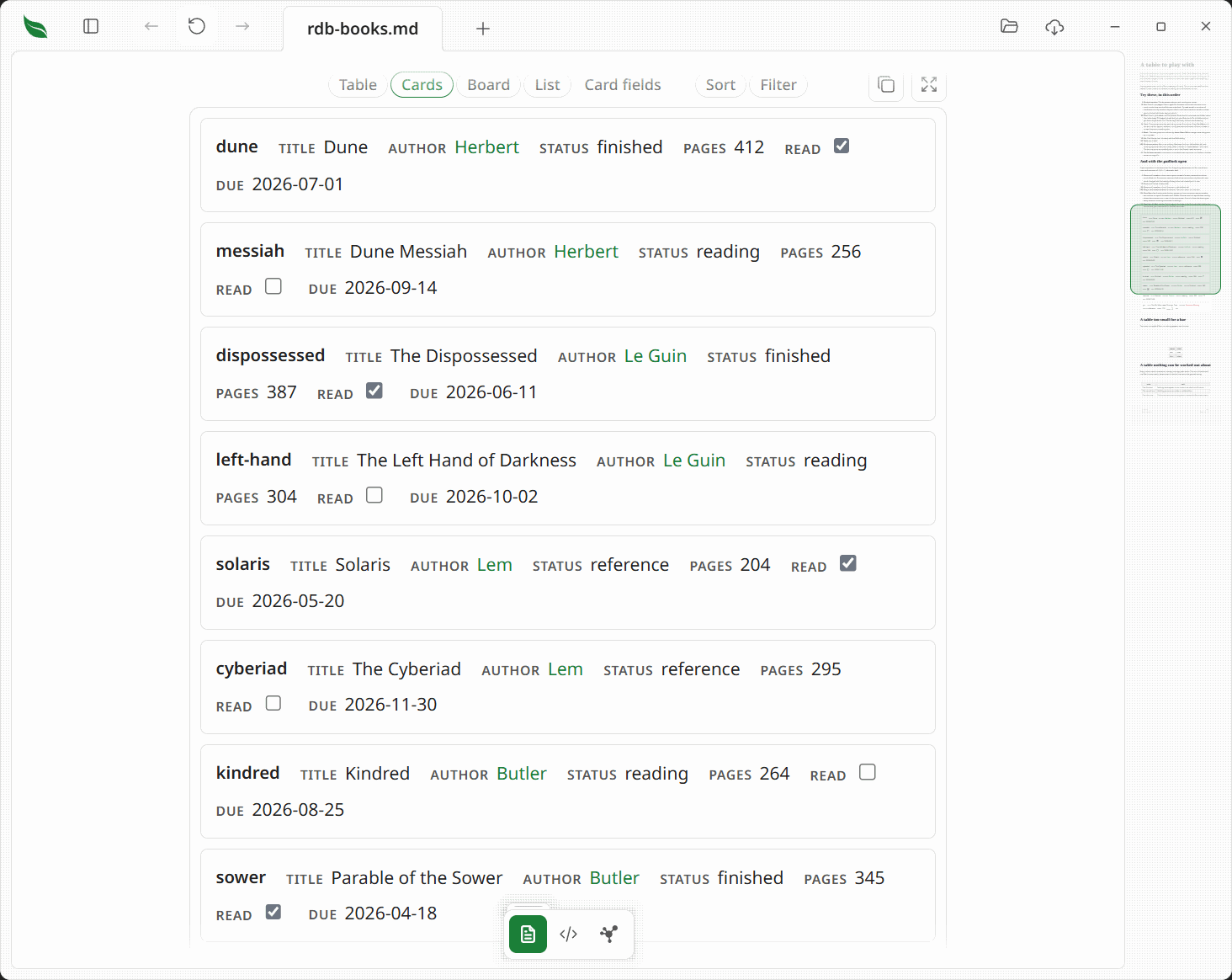

The same records drawn as cards, one per row, each led by its id with its title, author, status, pages, read and due named beside their values, and Cards marked in the bar with a Card fields button beside the four layouts

The same records as a board in three columns headed FINISHED, READING and REFERENCE, each card led by its id with its fields listed under it, and Board marked in the bar with a Board fields button beside the four layouts

A view you set stays set while the document is open, including when the file changes underneath. Editing a cell, dragging a card between board columns, or another program writing the file all redraw the page, and the layout, sort, filters and chosen fields come back with it — with any record that changed drawn as it now reads. Adding or deleting a table above the one you are looking at is the exception: the view is a table's place in the document, so the table you set it on is no longer at that place and it comes back as an ordinary table.

Sorting, filtering and changing the layout only change what is drawn. They write no file, setting or saved view, and reopening the document restores the table as written. Sorting from a cell's right-click menu in Editing is different: that action deliberately reorders the file.

Sort a column once for ascending order, again for descending order and a third time to restore the file's order. Numbers, ISO dates and task checkboxes sort by their values; other columns sort as words. A filter offers a value list for a short-choice column, a range for a number or date, and words for other columns. More than one filter can apply at once.

Relations

A Markdown link in a cell can point to a row in another table. For example, [Le Guin](authors.md#le-guin) points to the row whose first-column value is le-guin in authors.md. The link continues to open normally in GitHub, Obsidian and other Markdown readers; Leaftext adds the row lookup when it can read the target.

A relation is labeled by the target row's name. Where the first column is written as words — | Name | Born | with Le Guin | 1929 — the name is that first cell, so the link above reads Le Guin. Where the first column is written as its own address — | id | Name | with le-guin | Ursula K. Le Guin — the label is the next filled cell, Ursula K. Le Guin. The same name is shown when you point at the relation, offered in a relation cell's picker, and listed in a column that shows which rows point back.

Point at the relation to see the row it found, and press it to open the target file on that row — the first row whose first cell reads as the address, unless a heading of the same name comes first. A red relation means the target row is not there. A dashed gray relation means the target file is outside the set Leaftext has read, so it may still contain the row.

Describe a table

You do not have to set up a relational table. If Leaftext guesses a column wrong, press Describe. It writes an optional leaf:table HTML comment directly above the table with the type, key or relation correction. The comment is hidden in Leaftext, GitHub, Obsidian and VS Code; a malformed comment is ignored rather than partly applied.

Editing a relational table

Open the reading-view padlock to edit. A date, a value from a short list or a relation can open a picker instead of a caret. Dragging a board card to another column changes that row's grouping cell. Each action writes only the cell that changed and is one Undo step.

On a published site and in an embed

The same bar works on a Leaftext site published to the web and on a document embedded in another product: Table, Cards, Board, List, Sort, Filter and Describe all do what they do in the desktop app.

A published site resolves relations only among the pages it serves. A link to a row in another page of the site becomes a relation; a link to a page the site does not publish reads as a red relation, because that page is not there. A site reads at most 64 pages for one table, and a relation into a page past that reads as a dashed gray relation rather than a broken one.

An embedded document holds only itself, so it reads no other document: its link columns stay ordinary links, and every other view, sort and filter works as usual.
